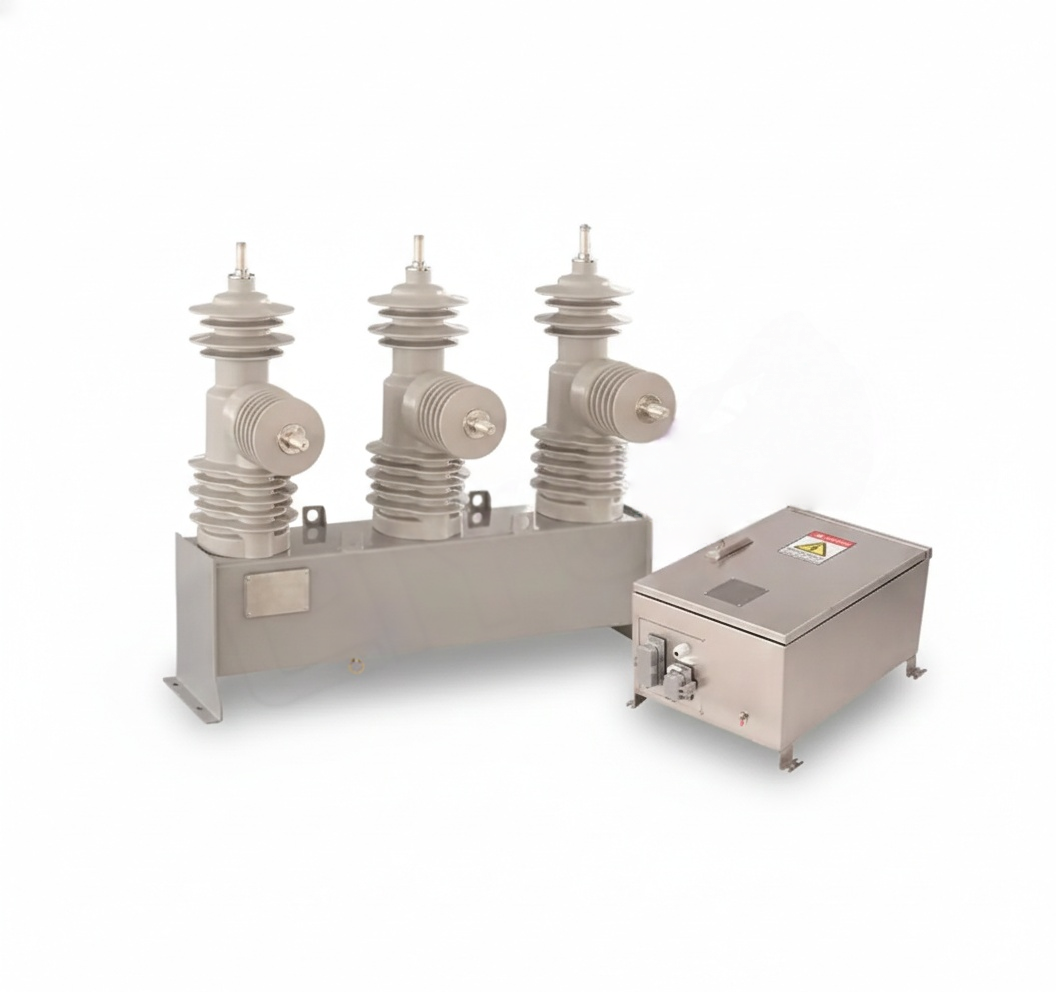

38kV Medium Voltage Outdoor Automatic Recloser | Three Phase Intelligent Circuit Breaker with BC500 Controller
The LYVZ38 three-phase recloser series is a premier outdoor protection solution engineered for electrical systems up to 38kV. Designed for critical power infrastructure, it features a robust 170kV lightning impulse withstand and an ultra-long creepage distance of 1290mm to ensure reliability in harsh environments. This intelligent system utilizes a magnetically ganged actuator for synchronized fault clearing across all three phases. Coupled with the BC500 intelligent control unit, it provides comprehensive real-time monitoring, adaptive reclosing, and advanced protection, significantly reducing outage times and supporting overall grid stability.
38kV Medium Voltage Outdoor Automatic Recloser | Three Phase Intelligent Circuit Breaker
The LYVZ38 three-phase recloser series is a top-rated outdoor automatic protection solution specifically engineered for electrical power systems up to 38kV. This intelligent system is designed for critical power infrastructure, offering a robust defense against grid faults while ensuring seamless power restoration.
High-Performance Engineering
-
Superior Insulation: Features an ultra-long creepage distance of 1290mm, making it highly reliable in heavily polluted or coastal environments.
-
Extreme Protection: Engineered with a 170kV lightning impulse withstand voltage to protect the system against severe atmospheric overvoltages.
-
High Breaking Capacity: Capable of handling high breaking currents up to 40kA, ensuring safe fault isolation even in high-demand networks.
Intelligence & Control
-
BC500 Smart Integration: Coupled with the BC500 intelligent control unit, providing comprehensive real-time monitoring, adaptive reclosing, and advanced protection logic.
-
Magnetically Ganged Actuator: Ensures precise and synchronized fault clearing across all three phases, enhancing the mechanical life and reliability of the unit.
-
Adaptive Reclosing: Supports grid reliability by automatically identifying transient faults and restoring power, significantly reducing overall outage times.
Safety & Operational Excellence
-
Operator Safety: Designed with a manual open feature and a highly visible status indicator to increase safety during on-site switching or inspections.
-
Durable Construction: Built to withstand harsh outdoor environments, providing a maintenance-free and long-lasting solution for modern smart grids.
Selection details for 38kV Medium Voltage Outdoor Automatic Recloser
To confirm the required outdoor distribution equipment configuration for your project, include:
- System voltage, continuous current, switching/protection function and fault level
- Mounting arrangement, control/protection requirements and site layout
- Outdoor operating conditions, available space, quantities and destination country
Drawings and quotation requirements
Send the model reference, application, quantity and destination country together with the relevant drawing or existing equipment information. Confirm the selected configuration against a model-specific drawing and ratings sheet before ordering; request the applicable test documentation for your project requirements.
Request model confirmation and a technical quotation · Compare related Outdoor High-Voltage Switchgear / Automatic Circuit Recloser.
