HXGN17-12 Indoor AC Metal-Enclosed Ring Main Unit – 12kV Fixed Switchgear
The HXGN17-12 is a compact indoor metal-enclosed ring main unit for 12kV three-phase distribution systems. It can be configured with load break switches or switch-fuse combinations for power reception, distribution and transformer protection.

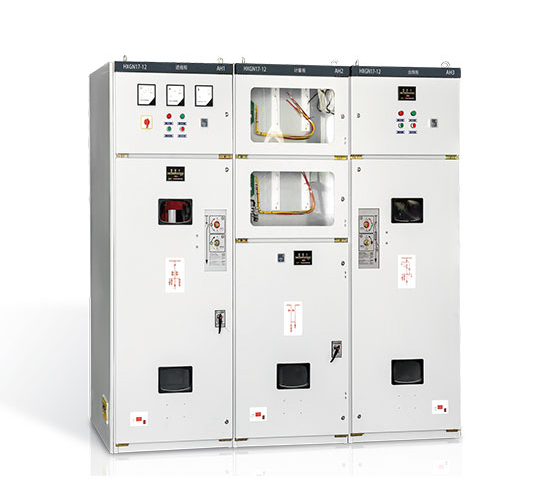

HXGN17-12 Indoor AC Metal-Enclosed Ring Main Unit
The HXGN17-12 is fixed-type indoor switchgear for 12kV three-phase AC distribution systems. Its compact metal-enclosed construction is suitable for ring-network and terminal distribution applications.
Key Features
- Rated voltage: 12kV
- Compact fixed metal-enclosed design
- Configurations with load break switch or switch-fuse combination
- Mechanical interlocking and clear operating indications
- Metering, protection and cable-entry options available by project
Applications
Suitable for urban distribution networks, industrial facilities, commercial buildings, compact substations and transformer protection.
Ordering Information
Please provide the single-line diagram, rated current, short-circuit withstand level, incoming and outgoing circuit arrangement, protection and metering requirements, cable entry and panel quantity.
Selection details for HXGN17-12 Indoor AC Metal-Enclosed Ring Main Unit – 12kV Fixed Switchgear
To confirm the required medium voltage switchgear configuration for your project, include:
- Single-line diagram, system voltage, rated current and short-circuit level
- Number and function of incoming/outgoing circuits, switching and protection configuration
- Indoor/outdoor location, cabinet layout, cable entry and control requirements
Drawings and quotation requirements
Send the model reference, application, quantity and destination country together with the relevant drawing or existing equipment information. Confirm the selected configuration against a model-specific drawing and ratings sheet before ordering; request the applicable test documentation for your project requirements.
Request model confirmation and a technical quotation · Compare related Medium Voltage Switchgear / Ring Main Unit Switchgear.
