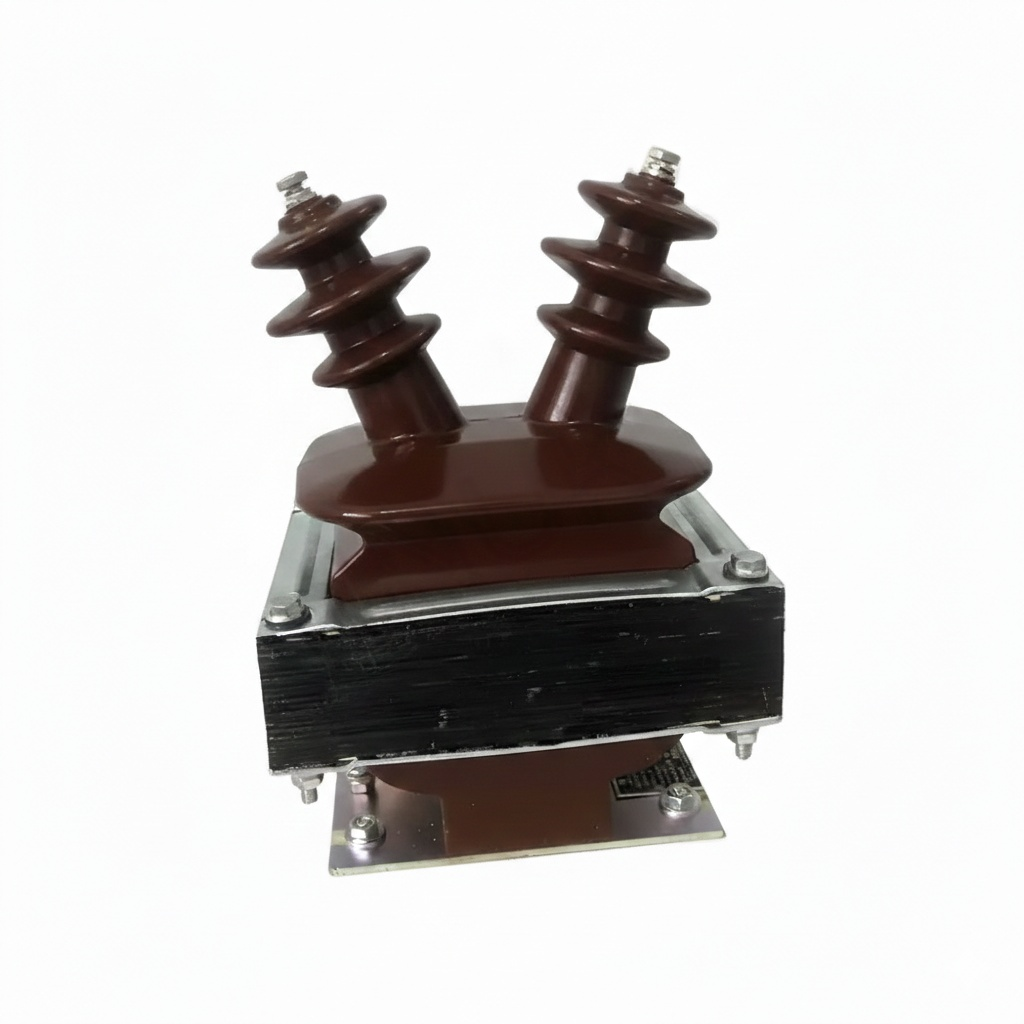

JDZ-10Q High-Efficiency 10kV Single Phase Voltage Transformer – Indoor Dry-Type Potential Transformer for Energy Metering & Relay Protection
The JDZ-10Q Voltage Transformer is a high-performance, single-phase indoor potential transformer designed for power systems operating at 3kV, 6kV, and 10kV. This dry-type, fully enclosed product is engineered for precision in electric energy metering, real-time voltage monitoring, and relay protection.
Key Features
-
3kV/6kV/10kV Compatibility: Designed for stable and precise performance across multiple indoor high-voltage power systems.
-
Versatile Wiring Configurations: Supports single-unit use, V/V connections (groups of two), and V/V/V connections (groups of three).
-
Precision Metering & Protection: Ideal for high-accuracy energy metering and providing dependable signals for protection relays.
-
Fully Enclosed Dry-Type Structure: Features a rugged, fully enclosed indoor design that is maintenance-free and easy to install.
-
Standard Compliance: Manufactured to meet international IEC60044 and national GB20840.3-2013 standards.
-
Dual-Frequency Operation: Engineered to perform consistently at both 50Hz and 60Hz rated frequencies.
Technical Summary
| Attribute | Specification |
| Model | JDZ-10Q |
| Rated Voltage | 3kV / 6kV / 10kV |
| Rated Frequency | 50Hz / 60Hz |
| Phase | Single-Phase |
| Insulation Type | Indoor Dry-Type, Fully Enclosed |
| Standards | IEC60044, GB20840.3-2013 |
