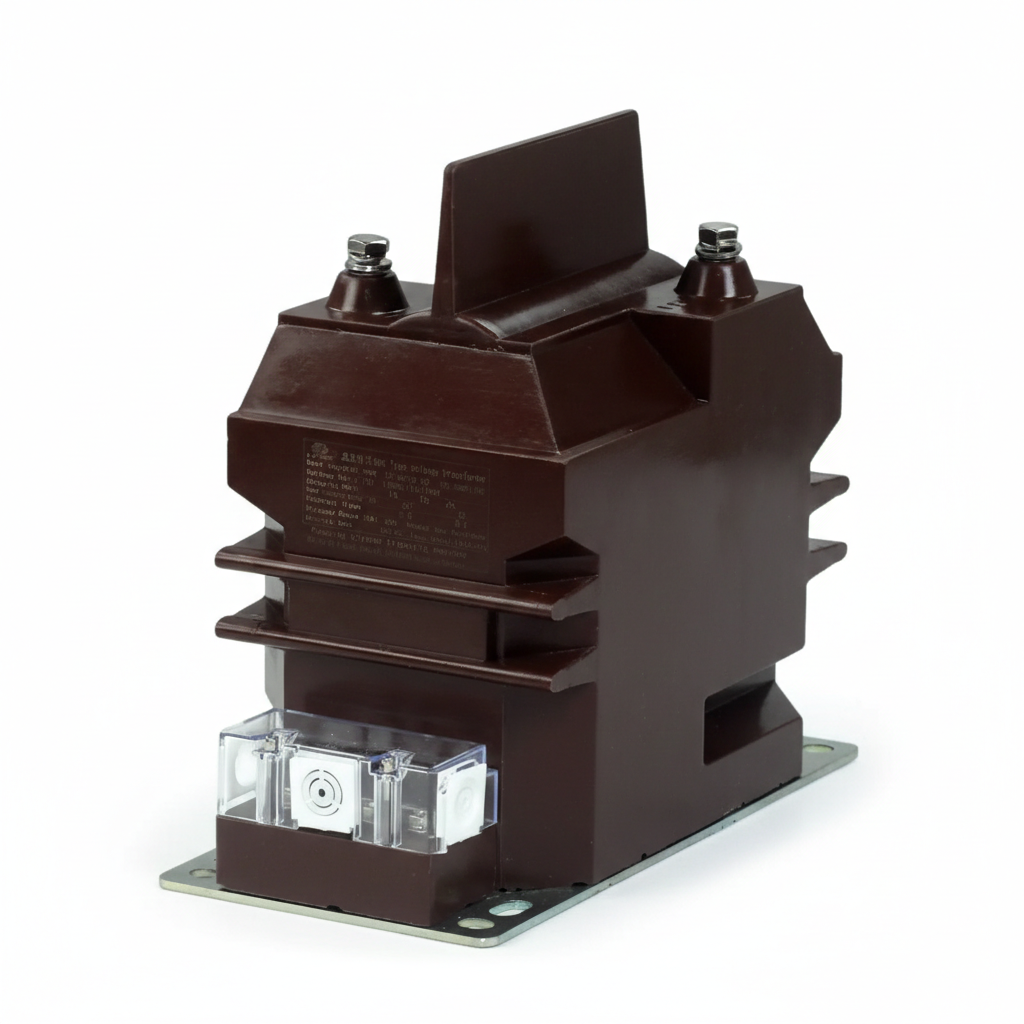

JDZ(X)10 Series 3kV 6kV 10kV Casting Insulation Voltage Transformer – Single-Phase Epoxy Resin Fully Enclosed VT for Indoor Switchgear
The JDZ(X)10 Series Voltage Transformer is a high-performance single-phase indoor potential transformer featuring advanced epoxy resin cast insulation. Designed as a fully enclosed product, it is ideal for power systems with rated frequencies of 50Hz or 60Hz and rated voltages of 3kV, 6kV, and 10kV.
Key Features
-
High Voltage Compatibility: Optimized for 3kV, 6kV, and 10kV power systems, providing flexible application across various indoor distribution networks.
-
Superior Casting Insulation: Constructed with high-grade epoxy resin casting for a fully enclosed, moisture-resistant, and arc-resistant body.
-
Precision Monitoring: Delivers accurate signals for energy measurement and real-time voltage monitoring.
-
Reliable Relay Protection: Provides dependable feedback for relay protection logic to ensure system safety.
-
Global Standard Compliance: Engineered to meet the rigorous requirements of IEC186 and GB1207-1997 standards.
-
Maintenance-Free Design: The robust, fully enclosed structure ensures long-term operational stability with minimal maintenance required.
Technical Summary
| Attribute | Specification |
| Model | JDZ(X)10 Series |
| Rated Voltage | 3kV / 6kV / 10kV |
| Rated Frequency | 50Hz / 60Hz |
| Phase | Single-phase |
| Insulation Type | Epoxy Resin Cast, Fully Enclosed |
| Standards | IEC186, GB1207-1997 |
