FKN12-24D Indoor Medium Voltage 24kV 630A Air Load Break Switch with Earthing Switch

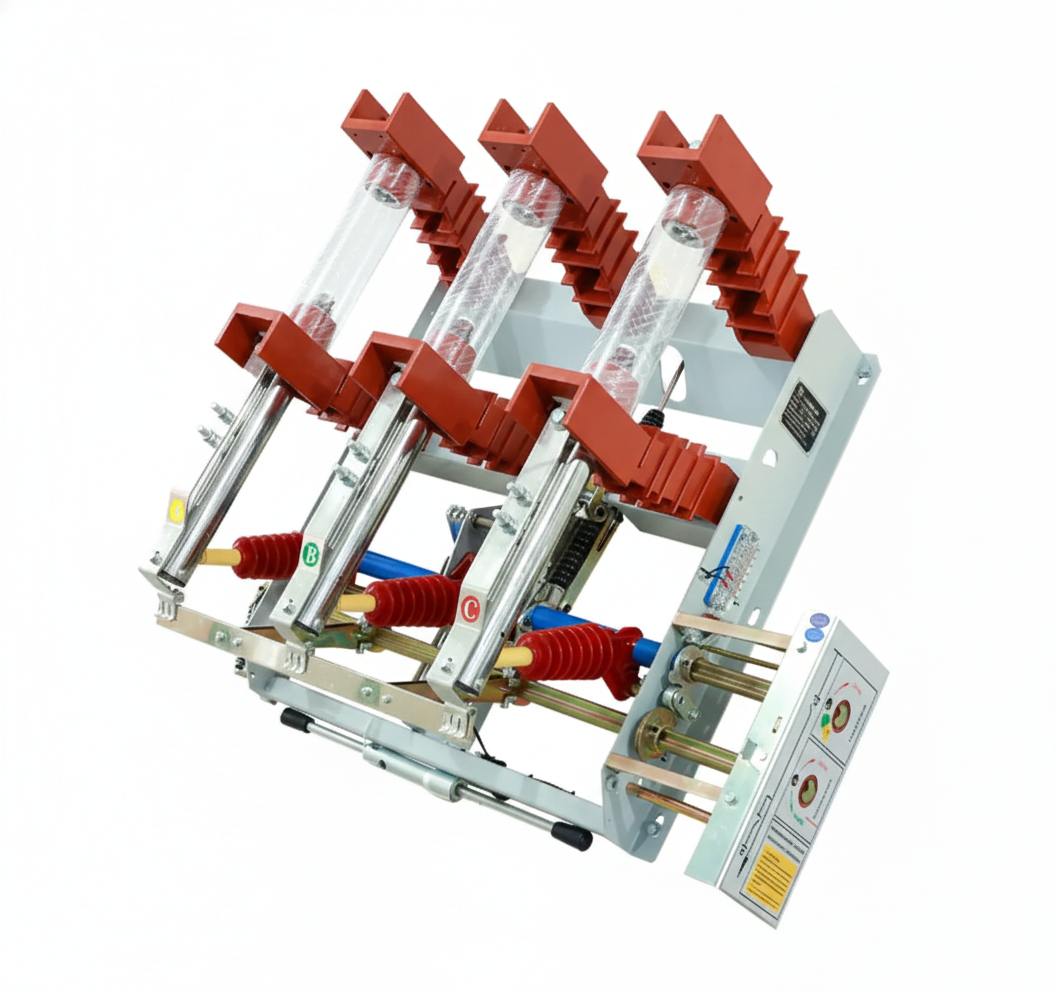

FKN12-24D Indoor Medium Voltage Air Load Break Switch (With Earthing)

Product Overview

The FKN12-24D is a manually operated medium-voltage switchgear component designed for reliable power distribution and advanced system protection. It is widely applied in 12kV–24kV distribution networks and is perfectly suited for indoor switchgear such as Ring Main Units (RMUs) and KYN series metal-clad cabinets.

Key Features

• Manual Operation: Designed as a manual operation type, equipped with a dedicated operating handle.

• Integrated Earthing: Comes standard with a grounding switch to ensure high operational safety during maintenance.

• Optimized Design: Features a compact structure with a 300mm phase distance and the mechanism conveniently installed on the right-hand side.

• Durability: Engineered for reliable arc extinguishing and a long service life with easy maintenance requirements.

• Customization: While standard without a fuse holder, optional integration is available upon request.

Technical Specifications

Operating Conditions

The FKN12-24D is designed to operate reliably under the following environmental conditions:

• Ambient Temperature: Maximum +40°C; Minimum -25°C.

• Altitude: ≤2000m.

• Relative Humidity: Daily average 95%; Monthly average  90%.

• Atmosphere: Must be free from corrosive or flammable gases, water vapor, or significant pollution.

• Vibration: Suitable for environments without frequent severe vibration or shock.
