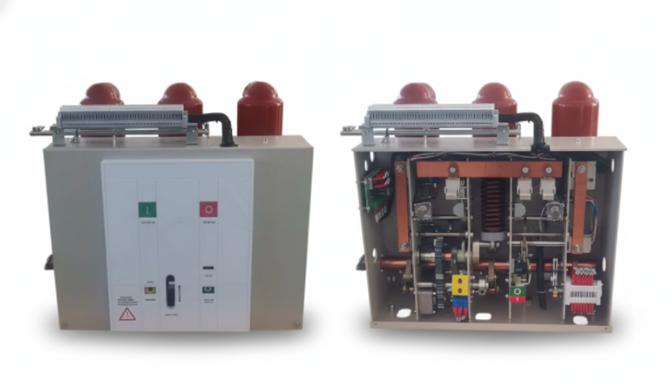

VBI-12 Indoor High Voltage Vacuum Circuit Breaker (12kV Fixed Type)
Product Short Description (English)
The VBI-12 Indoor High Voltage Vacuum Circuit Breaker is a high-performance 12kV component designed for three-phase AC 50Hz indoor power systems. Engineered for reliability in industrial mining, power plants, and substations, it provides robust control and protection for frequent operation environments.
Key Features:
-
Versatile Compatibility: Perfectly suited for KYN28A mid-mounted handcart switchgear and XGN series fixed switchgear.
-
Reliable Design: Features solid-sealed poles for enhanced insulation and stable performance under demanding conditions.
-
Standard Compliance: Fully adheres to international and national technical standards:
-
GB1984: High-voltage alternating-current circuit-breakers.
-
JB/T3855: 3.6~40.5kV Indoor AC high voltage vacuum circuit breakers.
-
IEC60056: High-voltage alternating-current circuit-breakers.
-
DVr403: Technical conditions for ordering 10-35kV indoor HV vacuum circuit breakers.
-
Product Overview
The VBI-12 Indoor Fixed Type Vacuum Circuit Breaker is a high-performance power distribution component designed for three-phase AC 50Hz indoor systems with a rated voltage of 12kV. Featuring a solid-sealed pole design, it is ideal for industrial enterprises, power plants, and substations requiring reliable control and protection.
Technical Specifications
| Main Technical Parameters | Unit | Value/Data |
| Rated Voltage | kV | 12 |
| Rated Current | A | 630, 1250, 2000, 3150 |
| Rated Short-circuit Breaking Current | kA | 20, 25, 31.5, 40 |
| Mechanical Life | Times | 10,000 |
| Rated Operating Sequence | / | O-0.3s-CO-180s-CO |
| Short-time Withstand Current (4s) | kA | 20, 25, 31.5, 40 |
Ambient Operating Conditions
To ensure long-term stability and safety, the following environment conditions are recommended:
-
Temperature: Ambient temperature between -10°C and +40°C (Storage allowed at -30°C).
-
Altitude: Installation altitude should not exceed 1000m.
-
Humidity: daily average ≤95%; monthly average ≤90%.
-
Seismic Resistance: Earthquake intensity not exceeding 8 degrees.
-
Environment: Site must be free from fire hazards, explosion risks, severe pollution, chemical corrosion, and heavy vibration.
