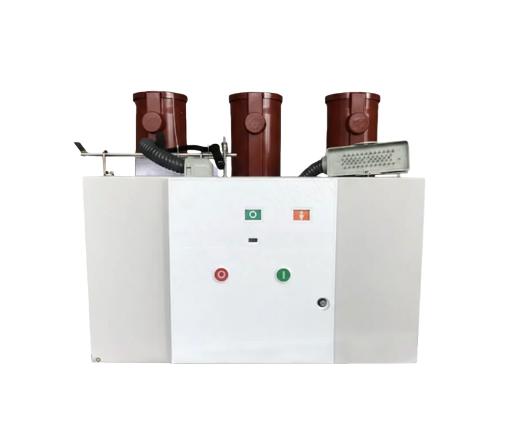

VS1-24 Indoor High Voltage Fixed Vacuum Circuit Breaker with Insulated Cylinder (24kV)

根据您提供的技术手册与参数信息，我为您整理了 VS1-24 户内高压固定式真空断路器 的完整 WordPress 产品详情页描述。

VS1-24 Indoor High Voltage Fixed Vacuum Circuit Switch (24kV)

Product Overview

The VS1-24 series indoor AC high voltage vacuum circuit breaker is a holistic sealed power distribution unit with a rated voltage of 24kV. Engineered for modern power systems, this three-phase AC 50/60Hz device features a compact structure and small volume, making it an ideal solution for controlling and protecting electrical apparatus in environments requiring frequent operations.

Superior Design & Features

The VS1-24 is built to provide reliable arc extinguishing and consistent mechanical performance:

• Holistic Sealed Structure: The breaker utilizes a holistic structure with a sealed arc-extinguishing chamber to ensure high-quality performance.

• Maintenance-Free Insulation: Equipped with an insulated cylinder that protects the vacuum interrupter and conductive parts.

• Sound Mechanical Features: Designed for longevity and stability, supporting various mounting methods to suit different switchgear requirements.

• Global Compliance: Fully conforms to international and domestic standards, including IEC62271, GB1984, JB3855, and DL403.

Technical Specifications

Environmental Operating Conditions

To maintain optimal safety and performance, the following conditions must be met:

1. Ambient Temperature: Range from -25°C to +40°C.

2. Altitude: Not exceeding 1000m.

3. Humidity: Daily average ≤ 95%, Monthly average ≤ 90%.

4. Site Requirements: Installation area must be free from inflammable, explosive, or corrosive materials and severe vibration.
