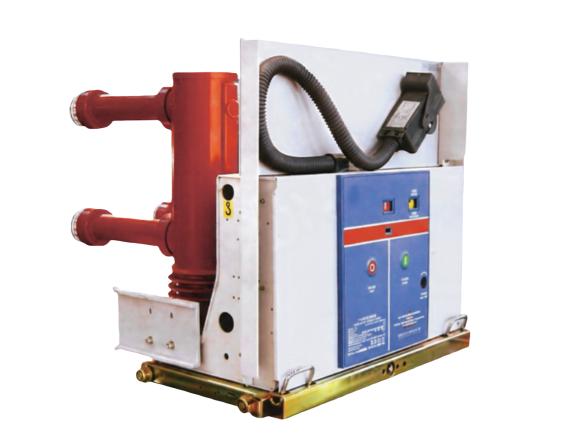

VS1-24 Indoor High Voltage Vacuum Circuit Breaker with Common Insulated Cylinder (24kV)
The VS1-24 series indoor high-voltage vacuum circuit breaker is a reliable 24kV power distribution unit featuring a common insulated cylinder and composite insulation technology. Designed with a compact spring-charged operating mechanism and rod-push system, it offers stable performance and easily integrates with KYN28-24 (GZS1) switchgear to meet “Five Preventions” interlocking demands. With an M2-E2-C2 capability grade, this VCB is ideal for protecting and controlling electrical equipment in power plants, substations, and industrial facilities.
VS1-24 Indoor High Voltage Vacuum Circuit Breaker with Common Insulated Cylinder (24kV)
Product Overview
The VS1-24 series indoor high-voltage vacuum circuit breaker is a robust three-phase AC 50Hz indoor power distribution unit with a rated voltage of 24kV. Designed for the protection and control of electrical equipment in power plants, substations, and industrial mining enterprises, this VCB utilizes a common insulated cylinder and composite insulation technology. Its compact design and reliable operation make it an ideal fit for KYN28-24 (GZS1) and similar medium-voltage switchgear.
Compact Design & Reliable Operation
This VS1-24 variant is engineered for high performance in constrained spaces:
-
Advanced Mechanism: Features a spring-charged operating mechanism paired with a rod-push system, ensuring stable and repeatable switching cycles.
-
High Capability Grade: Achieves a performance rating of M2-E2-C2, fully conforming to national standards and the latest IEC provisions.
-
Safety Integration: Easily matches with various switchgear models to meet the stringent “Five Preventions” interlocking demands of modern power systems.
-
Versatile Configurations: The series includes VCB trucks, isolation trucks, and fuse trucks to meet diverse application needs.
Technical Specifications
| Item | Unit | Technical Data |
| Rated Voltage | kV | 24 |
| Rated Current | A | 630 / 1250 / 1600 / 2000 / 2500 / 3150 |
| Power Frequency Withstand Voltage (1min) | kV | 65 |
| Lightning Impulse Withstand Voltage (Peak) | kV | 125 |
| Rated Short-Circuit Breaking Current | kA | 20 / 25 / 31.5 |
| Rated Short-Circuit Duration | s | 4 |
| Rated Operating Sequence | – | O-0.3s-CO-180s-CO |
| Maximum D.C. Component | % | 50% |
Applying Ambient Conditions
To ensure optimal performance, the VS1-24 should be operated within the following environmental limits:
-
Ambient Temperature: Between -10°C and +40°C.
-
Relative Humidity: Daily average ≤ 95%, Monthly average ≤ 90%.
-
Altitude: Less than 1000m (excluding special custom requirements).
-
Vapor Pressure: Daily average ≤ 2.2kPa, Monthly average ≤ 1.8kPa.
-
Installation Site: Must be free from fire, explosion hazards, chemical corrosion, or violent vibration.
