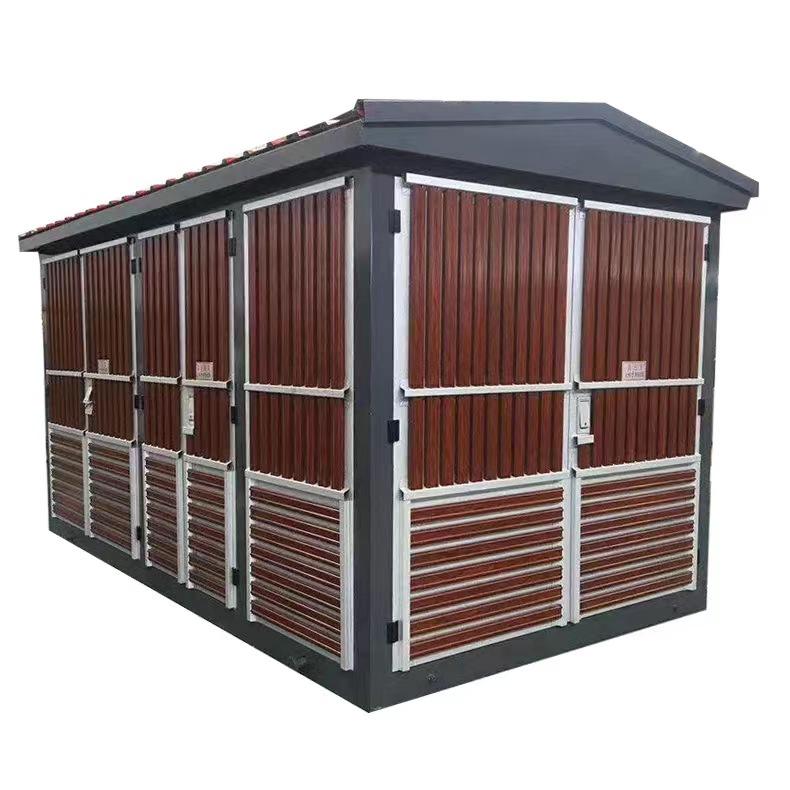

YB Series Landscape-Style Prefabricated Substation (Aesthetic Wooden-Slat Design)

Product Overview

The YB series landscape-style substation is a premium, outdoor prefabricated power distribution solution designed for 12kV (10kV) systems where aesthetic integration is as critical as technical performance. By upgrading the traditional European-style box transformer with high-quality wooden-slat decorative panels, this unit is specifically engineered to blend seamlessly into environmentally sensitive areas such as public parks, luxury residential communities, and scenic tourist resorts. It provides a complete, factory-assembled station for high-voltage reception, voltage transformation, and low-voltage distribution.

Core Features & Technical Advantages

• Aesthetic Landscape Integration: Features deep-colored wooden-strip (Wooden Slat) exterior panels and a dark grey frame, transforming industrial equipment into a visually pleasing structure.

• Weather-Resistant Sloped Roof: The grey sloped roof is designed for superior rain drainage and protection against moisture accumulation, ensuring long-term outdoor durability.

• Integrated Thermal Management: Strategic horizontal ventilation louvers are built into the lower sections of the doors to facilitate natural air convection, maintaining optimal cooling for the internal transformer.

• Standard 12kV Power Reliability: Built on the proven YB series platform, it ensures stable and secure power conversion from 10kV or 12kV grids to user-level voltages.

• Compact & Secure Enclosure: The box-type structure requires minimal land space and features professional-grade industrial locks on all access panels to prevent unauthorized entry.

• Independent Functional Compartments: Internally divided into high-voltage, transformer, and low-voltage rooms with dedicated access doors for safe maintenance.
